Topic 1: Introduction to Drones in Agriculture

The recent growth in the ag-tech industries is altering the way agriculture organisations are managing their businesses. The ability to gather, monitor and analyse critical data is now forming a vital component of the farming landscape. Recent advancements in Drone technology and applications have begun to alter the way organisations approach their business operations.

There’s a long history of air-based systems being used as a compliment to farm operations. Satellite imagery has been used for large scale crop and soil analysis as well as weather and climate monitoring. Both fixed wing and helicopters are widely used for aerial photography, mapping, pest control and herd management. The advent of drone technology is allowing farmers and farm managers to deliver a more localised and timely set of outcomes at a lower cost.

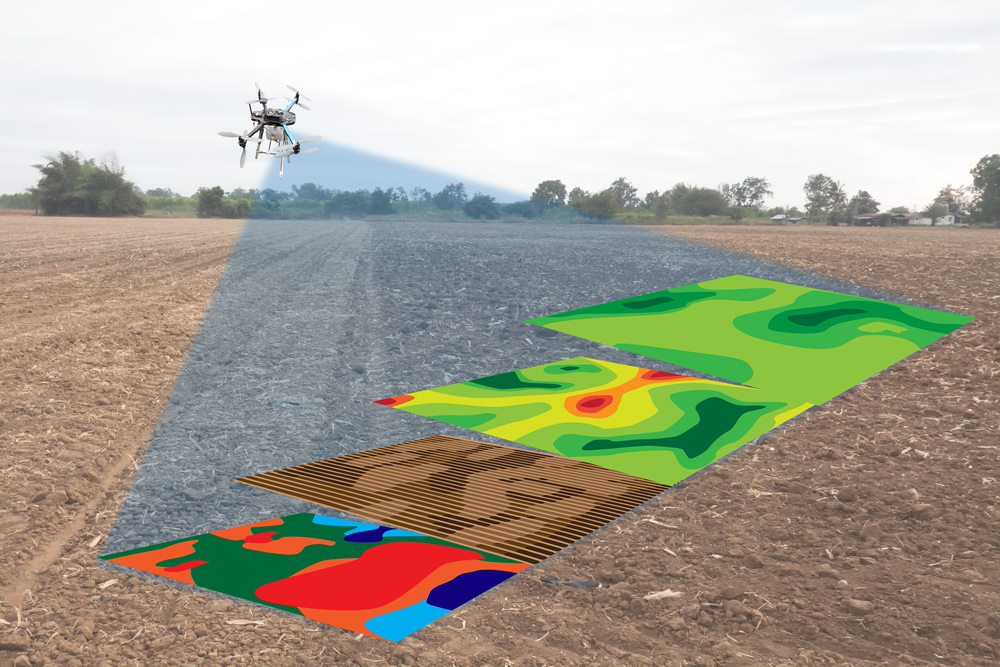

Image used under license from Shutterstock.com

View drone imagery versus google maps by clicking the URL link below:
https://www.theaeroscout.com.au/2016/06/drone-vs-google-imagery.html

Part of the challenge when introducing new technology into any business is to understand how it can best fit their requirements. What can it do for you? How best can I spend my money? What can the technology do to release my more valuable resources to other important work? Understanding a little about the capability and mapping it to what you do now is a good place to start.

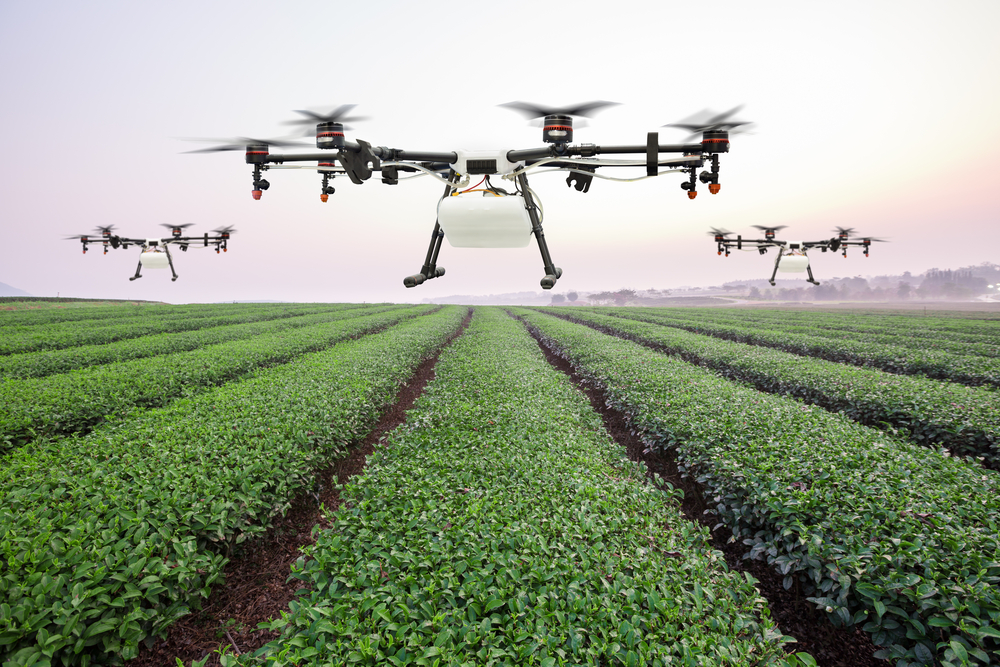

Image used under license from Shutterstock.com

At its simplest, most drones on the market today are nothing more than a flying camera. This can be a valuable tool for any farm environment. Using the on-board camera to deliver real time geo located images (both still and video) of your property can replace the need to move across the landscape to monitor and assess. Things such as:

• water and irrigation stations
• Irrigation pumps and dams
• fencing and farm infrastructure,
• weather damage
• plant count and identification
• stock management.
• feed troughs and distribution
• feral animal damage
• crop yield

These are all activities that can be observed by images from the drone.

Complimentary to the fast-paced advancement in the physical hardware of drone devices has been the growth and innovation of business-related software and applications. As useful as a simple set of photographs or videos from a drone may be, the real value comes when these images are processed into other outputs or products. Software houses have developed software that can process your images into a valuable set of outcomes. They can create stitched or orthostatic views merging many images into one for a large high def view of a location. They can process these images to form 3D terrain models as well as geo located height maps. With special filters or purpose-built multispectral cameras, applications are available to create colour maps indicating plant and crop health as well as soil and irrigation issues.


An example of a golf fairway area at Urrbrae using different cameras and processing.

Orthostatic view: Stitched image combining several HD images
Drone: DJI Mavic Pro 2
Camera: Hasselblad
Processing Software: Maps Made Easy
Image license: TAFESA

Most entry level drones are easy to fly and can be productive with minimal training or technical understanding. However more and more, hardware and software innovations and miniaturization of is offering greater capability than just photography. Special camera systems such as multispectral and infrared devices are entering the market at lower prices. Advanced mapping systems such as Lidar and high accuracy GPS are also becoming adaptable to farm use. Larger drones are often required for some of this equipment as the payloads are larger. One area very familiar to the farm community is pest and disease management with aerial spraying. Larger higher powered UAV devices can distribute tanks of chemical spray or even be used for aerial seeding.

Take a look at this Queensland Drones Company's website using this link below:
Agricultural Drones Australia | Oztech Drones for Farmers Queensland

Some newer implementations are using the drone as the targeting and mapping device while ground based autonomous vehicles with advanced AI systems apply the chemical to a very specific area. This type of weed management helps reduce waste while minimising the risk of contamination across paddocks through drift.

Image of a golf fairway area at Urrbrae and show a site of images using different cameras and processing.

NIR: Stitched image combining several near infrared images
Drone: DJI Mavic Pro 2
Camera: AgroCam (additional mount under drone)
Processing Software: AgroCam cloud processing
Image license: TAFE SA

The key to mapping plant health is to understand that healthy plants reflect light differently to stressed or unhealthy plants.

Light can be broken down into different colour bands or wavelengths. You can see this visible spectrum when white light is projected through a prism. Just like a rainbow.

There is another wavelength that sits just outside this visible spectrum called near infrared. By understanding how plants reflect or absorb this light it is possible to get an indication of the plant’s health.

Plants that are healthy reflect more green light than red and reflect more near infrared. Unhealthy plants absorb far more near infrared. By detecting this separation, a calculation can be made, and a value assigned to each area. This index value is referred to as NDVI or Normalized Difference Vegetation Index.

To find out more you can click on the URL link below.

Image used under license from Shutterstock.com

To find out more about things to know about NDVI click on the URL link below.
 (Normalized Difference Vegetation Index) [2.24]

Getting a new view or perspective of your property may present new opportunities to your business. As we have discussed, photography can be used in a variety of ways to present different outcomes from the same image set from the same flight. Aerial photography is a powerful tool and can be used for a variety of outcomes to the user. One challenge is that drones used in large environments are limited in the amount of landscape they can capture in each single image. This problem is overcome by using a series of overlapping images and having them digitally stitched together to produce a wider single orthostatic view.  These merged views combine a series of high-definition picture to form one image. This helps analyse your environment without flicking image after image.

Image used under license from Shutterstock.com

There are a variety of software products and services that can do this. Farmers who do not have a lot of flight training can take advantage of software that can help with mission flights. These are flights that are setup across a defined area in advance. The drone flies in a specific grid pattern, takes the photos at intervals and returns home when the mission is complete. These larger images are excellent for a broader evaluation of your property. They can be used for vegetation calculations, orchard mapping, and forest analysis as well as creek and erosion changes. They can also be helpful as before and after images to analyse changes over time. As the drone is not hampered by boggy or hard to access terrain, the drone images can give a live view of the state of your property. This could be particularly useful after major weather or fire events.

To see before and after images showing the scale of bushfire devastation click on the URL link below.
https://www.theguardian.com/australia-news/2020/jan/17/before-and-after-images-show-scale-of-bushfire-devastation

Advanced GPS systems on many drones enable GEO located photo formats such as .TIFF to have GPS location information imbedded in file. These photos can be exported into advance GIS (Global Information Systems) applications such as ArcGIS or QGIs for more advanced mapping, surveying, and area management.

One area that is increasingly being used in land management and mining is surveying with drones. With the right flight path and similar set of images you can create detailed 3D models and height maps of your environment. This can be useful to understand slopes, water movement and erosion points on your property. Also, terrain damage such as goat tracks, vehicles, and rabbit warrens.

Image used under license from Shutterstock.com

Photogrammetry is defined by the American Society for Photogrammetry and Remote Sensing (ASPRS) as “the art, science, and technology of obtaining reliable information about physical objects and the environment, through processes of recording, measuring, and interpreting imagery and digital representations of energy patterns derived from noncontact sensor systems” (Colwell, 1997:3).

It sounds complicated and at the software processing level it is. From a user perspective its quite a simple process. What photogrammetry enables you to do, is by creating a series of overlapping images of your property, the software pattern matches each photo image to image and triangulates a series of 3D points called a point cloud. This point cloud can then be processed into a 3D model or mesh with an image of the area overlayed as a texture.

This model is both Geo located and be used to get accurate heights and volumes. It can be used to measure the size of dams or cutaways or the fall of slopes and depressions. Some services are available online that can process all the images and produce the model, a stitched orthostatic high-def image as well as geo located heights maps all from the one set up photos.

Have a look at this website by clicking on the link below to see some good examples of what can be done and what outputs to expect:
Maps Made Easy - Samples

If you haven't already subscribed to 'farmers weekly' have a look at their website to see what great information they provide. They are a US site however it still contains valuable information. Click on the URL link below:
https://www.farmersweekly.co.za/agri-business/agribusinesses/how-super-detailed-drone-mapping-is-changing-farming-forever/

Farmers who do not have a lot of flight training can take advantage of software that can help with mission flights. These are flights that are setup in advance over a defined mapping area. The drone flies in a specific grid pattern, takes the photos at pre-defined intervals and returns home when the mission is complete. The images are them uploaded to the cloud and the maps produce. These services limit the amount of expensive computing equipment and expertise required to produce such output.

One note regarding photogrammetry. When creating models for terrain it works best for areas where vegetation is sparse. The process looks only at the image and note the actual ground height. It calculates the tops of plants as the level of terrain. To get an accurate level of the ground terrain, technology like Lidar would need to be deployed.

Lidar is a method for determining ranges by targeting an object with a laser and measuring the time for the reflected light to return to the receiver.

Lidar is a type of mapping technology that is gradually becoming available on drones. They require larger or specialist aircraft to use however like a lot of products in this space they are becoming more accessible. The main advantage for the use of Lidar is it is better at mapping terrain with vegetation. The fast-spinning laser can fire through the gaps in leaves, bounce off the ground and back. In some surveying and mapping projects this accuracy would be required. For the general farmer it may be the type of service you would outsource, however it is a technology that is developing and may become more useful than just terrain mapping.

For more information about drone photogrammetry vs. LIDAR and what sensor to choose for a given application click on the URL link below;

https://wingtra.com/drone-photogrammetry-vs-lidar/

Image used under license from Shutterstock.com

Thermal imaging cameras are also being developed for deployment by drones. These cameras detect the heat off surfaces through a specific wavelength of light. This infrared light is invisible to the naked eye but when processed with the appropriate equipment the radiation is converted into an image we can see. Night vision and advanced military systems have used this for some time.

Image used under license from Shutterstock.com

Watch this footage to see cattle mustering using drones.
 Remote Controlled Cattle Mustering Takes Flight [8.12]

Work is also being done using drones to muster cattle and manage the movement of stock around the property. Not only is this a cheap efficient method of farm management, but it also helps reduce the risk of farm injuries.

WHS statistics relating to quad and two-wheel bike injures are significant. Though this technology does not replace the need for farm staff, if can be used strategically to improve the work environment and overall productivity of the business.
